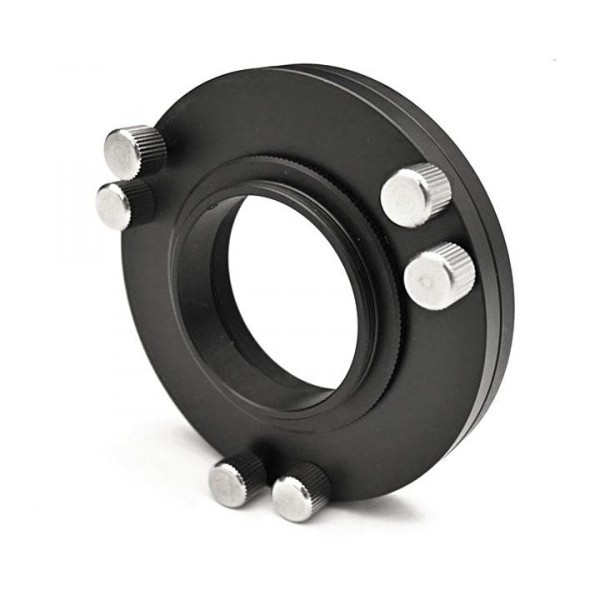

M48 Tilter - M48x0,75

This mechanism compensates tilted focalplanes, focusers, accessories and camera sensors - unsharp corners are avoided

• ♦ Connection via M48x0,75 thread
• ♦ Only 11 mm optical path from M48 female to M48 female
• ♦ M48 conversion adapter included - converts the female to a M48 male thread
• ♦ Stable metal design
• ♦ Easy adjustment without tools

TS-Optics M48 Tilter - tilting compensator
Alignment of focal plane and camera sensor orientation

Many astro photographers know the problem: one focuses as precisely as possible but in one or two corners, the stars are not pinpoints. Often, the result is a compromise by "tricking" the focus to a point where most of the image field has the best focus possible or cropping the image.

Some possible causes of this problem:
♦ a tilted camera sensor (fragments of a millimetre are enough)
♦ a tilted focuser
♦ a tilted focal plane of the telescope (common at Newtonian telescopes)
♦ tilted optical accessories by unprecise clamping

This is the solution:
With the TS M48 Tilter, the camera´s sensor is aligned with the focal plane no matter what causes the tilt. You just have to keep the orientation of the complete accessory train.

The adjustment is done by knurled screws, it can be done quickly and prevents losing tools.
