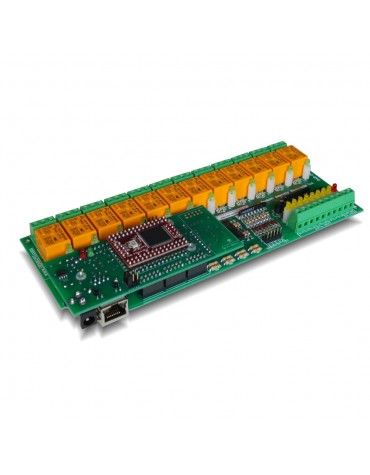

Relè box ethernet per controllo remoto di periferiche tramite porta seriale virtuale, TCP/IP, WEB, HTTP API, Telnet, SMTP (e-mails). Il box ha 12 relè da 15ah, 8 entrate digitali (0-12v), 8 entrate analogiche (0-10v) e una porta UART (3,3v).
Sistema adatto all'automazione di osservatori remoti, i relè possono essere usati per molteplici fini come accendere o spegnere una ccd,una montatura, un computer, apertura/chiusura tetto, etc mentre le entrate analogiche, collegate ad un fine corsa meccanico o magnetico, posso dare conferma di alcuni stati (chiusura/apertura effettiva del tetto, parcheggio della montatura etc)
Compatibile con sensori di prossimità,temperatura,umidità e luce.
Il Denkovi relè box può essere controllato da numerose applicazioni anche tramite cellulare o pagina WEB. Consigliamo l'utilizzo con il Software Voyager e Viking
Specifiche tecniche:
- Based on DAEnetIP3-EB (documentation)
- 10/100 Mbit Ethernet interface with Link Led. Auto MDIX
- UART interface for RS232/RS485 serial connection with other such controllers. UART can be used also for configuration of the parameters
- Power supply voltage, selectable during purchase:
- 12VDC
- 24VDC
- Power consumption (max): 720mA at 12VDC (about 420mA at 24VDC)
- 12 SPDT relay channels (the type depends on the stocks quantity in our store):
- TONGLING - JQC-3FF-S-Z (10A / 250VAC, 15A / 120VAC, 10A / 28VDC)
- SUNHOLD - RAS xx15 (10A / 250VAC, 15A / 120VAC, 15A / 24VDC)
- 1 x 8 digital inputs with schmitt trigger. Levels: 0-12VDC or 0-24VDC
- 1 x 8 analog inputs (0 - 10VDC input range). Referent voltage: 2.048 V, resolution: 10 bits (for series after 06 Nov 2017)
- On boot the outputs are set with states before reset
- Built in RTC (Real Time Clock). It can be synchronized via NTP manually or automatically each 6 hours
- Capacitor power backup keeps time for days during power failure
- Virtual Serial Port - it may be accessed with Serial RS232 commands over TCP/IP network
- Integrated WEB server with password and features like Ajax parameters reading
- Configuration utility software DAEnetIP3 Manager available - here
- Telnet commands
- HTTP API commands
- TCP/IP ASCII protocol with optional RC4 encryption
- All the network ports can be defined by the user
- Supports ICMP (ping)
- 19 modes for I/O lines such as inverting, timer, pulses, setting output via input and switch ON/OFF according particular time (scheduling)
- Any input may be referred to control any output of this or another controller in the TCP/IP network
- Linearization for the analog inputs
- Box-to-Box (distributed) mode
- SMTP with authentication (SSL is not supported)
- E-mail notifications for various events
- IP address protection
- Power and status led
- Working temperature range: -20 to +70 °C;
- Supported by DRMv3 Software - New;
- Software by Denkovi - DRM Software (Windows/Linux), DAEnetIP3 Configuration utility, Command Line Tool, DAE-iModules App for iOS and DAE-aModules App for Android - New;
- Third party software - more info here;
- Supported by Home Assistant home automation software - New;
- Supported by openHAB home automation software ;
- Supported by Domoticz home automation software;
- Supported by Node-RED IoT platform;
- Various software examples - here;
