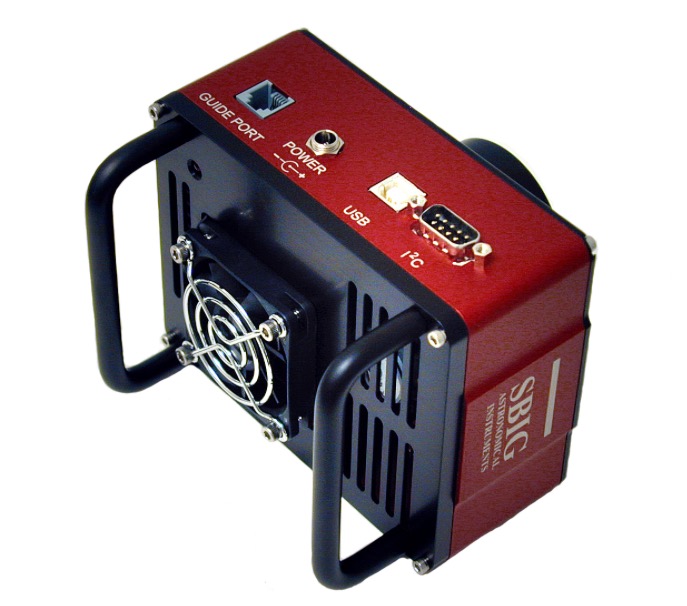

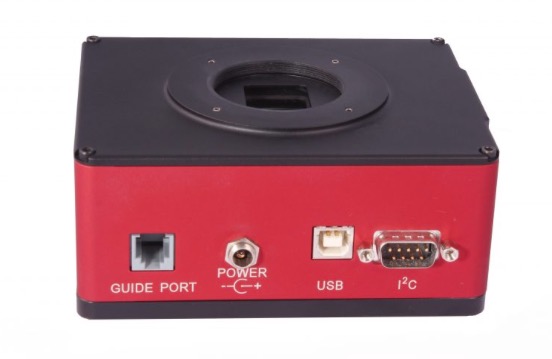

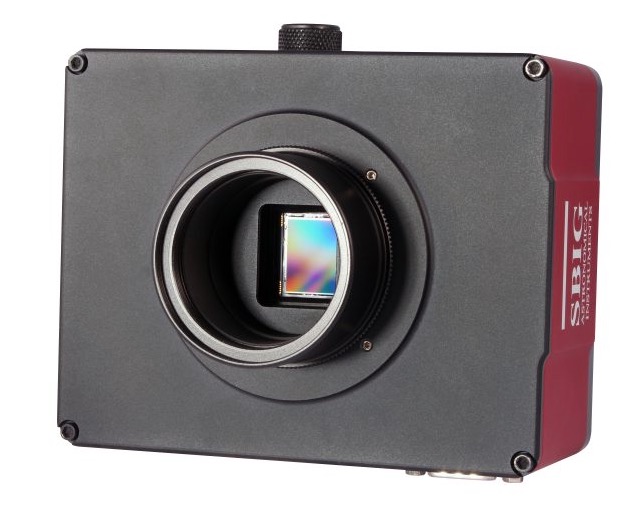

SBIG STF-8300m Mono

Write Your Review

2.468,00 €

Disponibilità: Non disponibile

SBIG STF-8300m Monochrome CCD Camera - Kodak KAF-8300 Sensor - D=22,2 mm - 5,4 um [EN]




SBIG STF-8300m Monochrome CCD Camera - Kodak KAF-8300 Sensor - D=22,2 mm - 5,4 µm

Kodak KAF-8300M Sensor with Anti Blooming - Sensor Diameter 22,2 mm - Pixel 5.4 µm x 5.4 µm
♦ The thermoelectrically cooled monochrome camera with 3326 x 2504 pixels supplies internal image processing and a very short image download time.

♦ Together with the even-illumination shutter, this makes the camera well-suited for high speed photometry.

The STF-8300M (monochrome) camera is an updated version of the popular ST-8300 model based on Kodak´s KAF-8300, 8.3 megapixel, full frame CCD. This CCD array has 3326 x 2504 pixels at 5.4 microns making it ideal for both short fast optics in high resolution (unbinned) mode, and for longer focal lengths it can be binned binned 2x2 or 3x3. The CCD has both antiblooming and microlens technology to improve the effective Quantum Efficiency of the sensor. As a result it can be used in a wide variety of optical configurations. The camera electronics are USB 2.0 for fast download rates and rapid focus mode. The small light body accepts both c-mount and standard 35 mm Nikon camera lenses. A built-in mechanical shutter is included for automatic dark frames. In addition to its imaging capabilities, it can also be used as a guider.





Download Time:

♦ Among the key second-generation updates in the STF-8300M is a 10 megapixel/second digitization rate for faster image downloads. A full high resolution STF-8300M image now downloads in less than one second, compared to the 7.7 seconds of the original ST-8300M. Also included is a faster sampling speed and a full frame image buffer, resulting in higher quality images with fewer artifacts and cleaner FFT's.

Shutter:

♦ A built-in mechanical even-illumination photometric shutter is included for automatic dark frames. This is a necessity for anyone operating remotely, even if remotely means only a few feet away from the telescope.

♦ Binned 2x2 the pixels are 10.8 microns square and binned 3x3 they are 16.2 microns square. At 2x2 the array is still 2 megapixels and at 3x3 just under one megapixel. You can bin the pixels up to a maximum of 15x15. This feature makes it possible to match the camera's pixel size to your seeing and scope, from a small refractor up to a large SCT.

Power supply:

♦ A universal 90-240 VAC power supply with a remote on/off switch is included.



Technical data:

Detector: Kodak KAF-8300M single-shot monochrome with anti-blooming and microlenses
Sensor Size: 18 x 13.5 mm
Pixel Array: 3326 x 2504 pixels
Pixel Size: 5.4 x 5.4 microns
Total Pixels: 8.3 megapixels
Full Well Capacity: ~25,500 e-
Dark Current: ~0.002 e-/pixel/second at -10 degrees C
Anti-blooming: 1000x
Shutter: mechanical, even illuminated
Exposure: 0.1 to 3600 seconds
Correlated Double Sampling: yes
A/D conversion: 16 bits
A/D gain: 0.37 e-/ADU
Read noise: ~9.3 e- RMS
Binning modes: 1x1, 2x2, 3x3 . . . 15x15
Pixel digitization rate: >10 megapixels per second
Full frame download: <1 second
Standard cooling: single stage thermoelectric, active fan, -40° C from ambient maximum, air cooling only
Temperature regulation: +/-0.1 degree C
Power requirements: 12 VDC, 3 amps maximum, power supply included. Build-in voltage regulator for using batteries
Computer interface: USB 2.0
Computer compatibility: all Windows 32 and 64 bit O/S, plus Mac OSX
Optical head: measures 2" x 4" x 5" (50 mm x 100 mm x 127 mm); weighs approximately 1.8 pounds/0.8 kg
Supplied mounting methods: T-thread, 2" nosepiece
Back focus needed: 0.69"/17.5 mm
